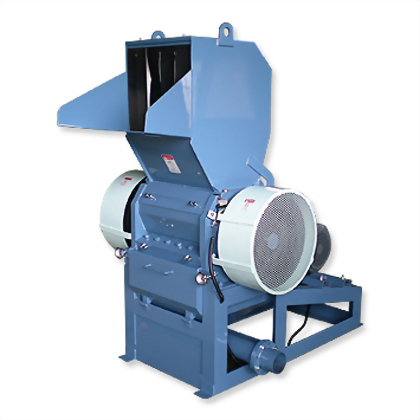

Versatile Powerful Crusher

Model : GM221

  • The round and hollow frame structure gives big processing volume to allow large quantity of waste feeding-in and fast output. The capacity is 3 times of the general type of crushers.
  • Any plastic (such the subjects that harder than ABS plastic steel, high or low density plastic, thin film & soft material, adhesive tape) is able to be smashed and can be named as universal powerful crusher.
  • Huge plastic blocks are not necessary to be pre-sawed and precut for labor saving.
  • The special design of angle of cutters results in motor running easily and having the best output.
  • With water cooling system and the clearance between cutters provide facilities of heat dissipation in order to reduce damage effect between bearings and machine bodies and lessen the depreciation of steel characteristics.


Model Moter
(HP)
Into
size(mm)
Rotary
Cutter
Slationary
Cutter
N.W. LxWxH (mm) Rotary
Diameter
Capacity
GM-210 5 270x160 3 PCS 4 PCS 400 kgs 1000x680x1380 Ø200 150~300kgs
GM-212 7-1/2~10 315x185 3 PCS 4 PCS 700 kgs 1500x800x1400 Ø260
200~500kgs
GM-215 15~20 400x240 3 PCS 4 PCS 800 kgs 1600x960x1450 Ø298
300~600kgs
GM-218 20~25 463x274 3 PCS 4 PCS 1000 kgs 1650x1050x1600 Ø330
400~700kgs
GM-220 25~30 536x286 3 PCS
OR
6 PCS
4 PCS 1150 kgs 1650x1160x1800 Ø380
500~900kgs
GM-225 30~50 636X290 3 PCS
OR
6 PCS
4 PCS 1250 kgs 1650x1280x1850 Ø380
600~1200kgs
