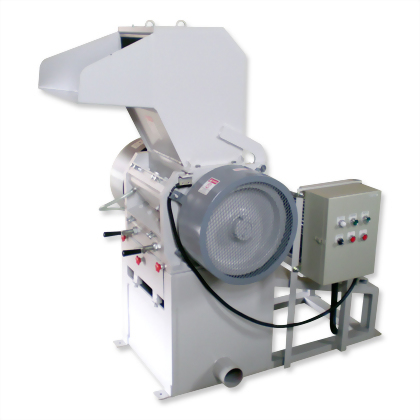

Versatile Powerful Crusher

Model : GM215


  • Hydraulic body opening is easy for changing new cutters and cleaning remainders
  • Energy saving, wide cutting angle, stable electric current when crushing, all of these depend on special design of rotary cutter’s angle.
  • Bearing are installed on the outside of body for maintenance easily and no influence by the temperature of the body, the life of bearing increase.
  • Big rotating diameter and big entrance enable to crusher enormous plastic products.


Model Moter
(HP)
Into
size(mm)
Rotary
Cutter
Slationary
Cutter
N.W. LxWxH (mm) Rotary
Diameter
Capacity
GM-210 5 270x160 3 PCS 4 PCS 400 kgs 1000x680x1380 Ø200 150~300kgs
GM-212 7-1/2~10 315x185 3 PCS 4 PCS 700 kgs 1500x800x1400 Ø260
200~500kgs
GM-215 15~20 400x240 3 PCS 4 PCS 800 kgs 1600x960x1450 Ø298
300~600kgs
GM-218 20~25 463x274 3 PCS 4 PCS 1000 kgs 1650x1050x1600 Ø330
400~700kgs
GM-220 25~30 536x286 3 PCS
OR
6 PCS
4 PCS 1150 kgs 1650x1160x1800 Ø380
500~900kgs
GM-225 30~50 636X290 3 PCS
OR
6 PCS
4 PCS 1250 kgs 1650x1280x1850 Ø380
600~1200kgs
