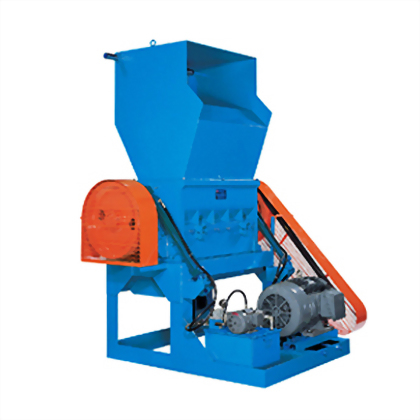

Model :
GC500/1000
- Hydraulic body opening is easy for changing new cutters and cleaning remainders
- Energy saving, wide cutting angle, stable electric current when crushing, all of these depend on special design of rotary cutter’s angle.
- Bearing are installed on the outside of body for maintenance easily and no influence by the temperature of the body, the life of bearing increase.
- Big rotating diameter and big entrance enable to crusher enormous plastic products.
| Type | HP | Into Size |
Rotary Cutter |
Slationary Cutter |
Rotary Diamlter |
Capacity Kgthr kg/kg |
| GC500/750 | 50~60 | 500x750 mm | 12 pcs | 6 pcs | 500 mm | 600~800 |
| GC500/1000 | 60~75 | 500x1000 mm | 16 pcs | 4 pcs | 500 mm | 700~1000 |
| GC500/1200 | 75~100 | 500x1200 mm | 16 pcs | 4 pcs | 500 mm | 900~1200 |
| GC600/750 | 60~75 | 600x750 mm | 12 pcs | 6 pcs | 600 mm | 800~1000 |
| GC600/1000 | 75-100 | 600x1000 mm | 16 pcs | 4 pcs | 600 mm | 900~1200 |
| GC600/1200 | 100~125 | 600x1200 mm | 16 pcs | 4 pcs | 600 mm | 1000~1300 |
| GC600/1500 | 125~150 | 600x1590 mm | 20 pcs | 6 pcs | 600 mm | 1200~1600 |
| GC800/1000 | 100~125 | 800x1000 mm | 16 pcs | 4 pcs | 800 mm | 1200~1500 |
| GC800/1200 | 125~150 | 800x1200 mm | 16 pcs | 6 pcs | 800 mm | 1300~1800 |
| GC800/1500 | 150~200 | 800x1500 mm | 20 pcs | 4 pcs | 800 mm | 1500~2000 |
