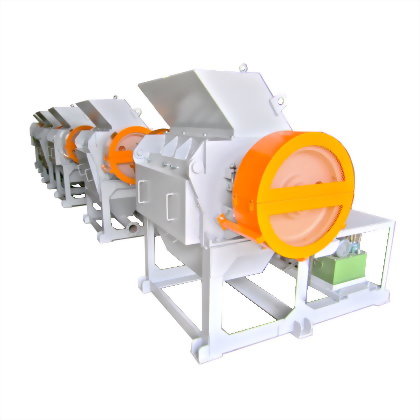

Strength Crusher

Hydraulic body opening is easy for changing new cutters and cleaning remainders
Energy saving, wide cutting angle, stable electric current when crushing, all of these depend on special design of rotary cutter’s angle.
Model : GC500/1000

  • Hydraulic body opening is easy for changing new cutters and cleaning remainders
  • Energy saving, wide cutting angle, stable electric current when crushing, all of these depend on special design of rotary cutter’s angle.
  • Bearing are installed on the outside of body for maintenance easily and no influence by the temperature of the body, the life of bearing increase.
  • Big rotating diameter and big entrance enable to crusher enormous plastic products.
Type HP Into Size Rotary
Cutter
Slationary
Cutter
Rotary
Diamlter
Capacity
Kgthr
kg/kg
GC500/750 50~60 500x750 mm 12 pcs 6 pcs 500 mm 600~800
GC500/1000 60~75 500x1000 mm 16 pcs 4 pcs 500 mm 700~1000
GC500/1200 75~100 500x1200 mm 16 pcs 4 pcs 500 mm 900~1200
GC600/750 60~75 600x750 mm 12 pcs 6 pcs 600 mm 800~1000
GC600/1000 75-100 600x1000 mm 16 pcs 4 pcs 600 mm 900~1200
GM600/1200 100~125 600x1200 mm 16 pcs 4 pcs 600 mm 1000~1300
GM600/1500 125~150 600x1590 mm 20 pcs 6 pcs 600 mm 1200~1600
GM800/1000 100~125 800x1000 mm 16 pcs 4 pcs 800 mm 1200~1500
GM800/1200 125~150 800x1200 mm 16 pcs 6 pcs 800 mm 1300~1800
GM800/1500 150~200 800x1500 mm 20 pcs 4 pcs 800 mm 1500~2000
