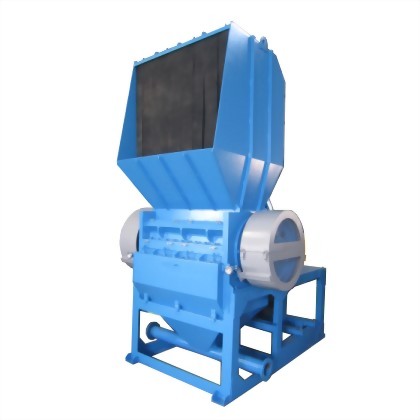

Universal Powerful Crusher
Model :
GD-540
- It can smash any plastic material rapidly and can be applied on several usages. It’s a crusher with full power.
- The big plastic materials can be smashed directly without blocking which will result in the stopping of smash. So it can save a lot of time.
| Model |
Motor (HP) |
Into Size (mm) |
Rotary Cutter |
Slationary Cutter |
N.W. | LxWxH (mm) |
Rotary Diameter |
Capacity |
| GD-500 | 20~40 | 548x420 mm | 3 or 6 pcs | 4 pcs | 2000 kgs | 1650x1250x2200 | Ø500 | 500~1200 kgs |
| GD500/1000 | 60~75 | 500x1000 mm | 16 pcs | 4 pcs | 2400 kgs |
1650x1510x2400 |
Ø500 | 600~1400 kgs |
| GD500/1200 | 75~100 | 500x1200 mm | 16 pcs | 4 pcs | 2900 kgs |
1650x1760x2500 |
Ø500 | 600~1800 kgs |
