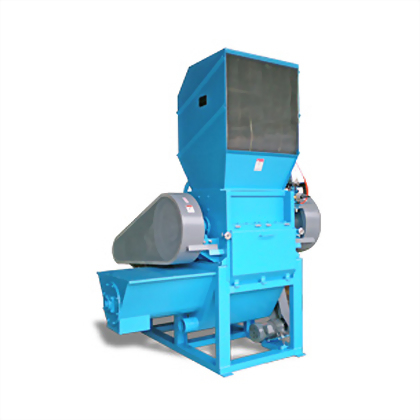

Universal Powerful Crusher

Model : GD-540

  • It can smash any plastic material rapidly and can be applied on several usages. It’s a crusher with full power.
  • The big plastic materials can be smashed directly without blocking which will result in the stopping of smash. So it can save a lot of time.

Model Motor
(HP)
Into Size (mm) Rotary
Cutter
Slationary
Cutter
N.W. LxWxH (mm) Rotary
Diameter
Capacity
GD-500 20~40 548x420  3 or 6 pcs 4 pcs 2000 kgs 1650x1250x2200 Ø500 500~1200 kgs
GD-530 40~60 764x450  3 or 9 pcs 8 pcs 2400 kgs 1650x1510x2400
Ø500 600~1400 kgs
GD-540 50~100 1036x450  12 pcs 8 pcs 2900 kgs 1650x1760x2500
Ø500 600~1800 kgs
