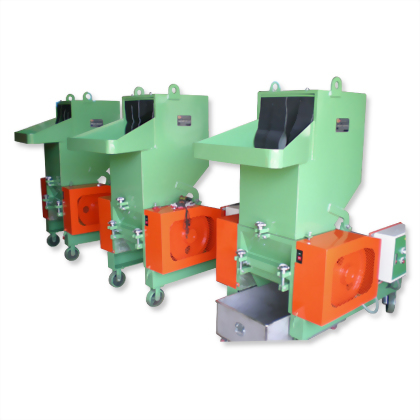

Intellective Noise-Supperession Crusher

Model : GT-520

  • Replaceable claws pioneer

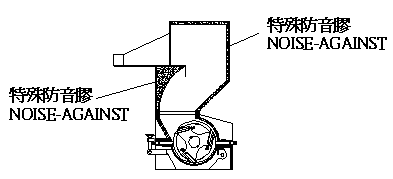

  • Noise resistant PU material is equipped on ho-pper to reduce noise to the maximum extens-ion.
  • Cutting angle is especially designed for crus-hing easily.
  • The machine structure is especially designed to ensure that output is not burst.
  • Disassembly screen and clean material easily; equipped with safety devices.
Model Motor Into Size Rotary
Dia
Stationary
Cutter
Rotary Cutter Capacity
(kg/hr)
Enclosure
GT-504 1HP x 4P 100 x150 200 100 x 2 pcs 100 x 3 pcs 20~40 ☐◯
GT-506 2HP x 4P 154 x 150 200 150 x 2 pcs 75 x 2爪 x 6 pcs 30~60 ☐◯
GT-508 3HP x 4P 200 x 150 200 200 x 2 pcs 100 x 2爪 x6 pcs 40~80 ☐◯
GT-510 5HP x 4P 250 x 250 300 250 x 2 pcs 75 x 6 pcs + 100 x3 pcs  100~250 ☐◯
GT-512 7.5HP x 4P 300 x 250 300 300 x 2 pcs 75 x 4爪 x 12 pcs 150~300 ☐◯
GT-514 10HP x 4P 350 x 250 300 350 x 2 pcs 75x 6 pcs+100 x 6 pcs 200~400 ☐◯
GT-516 15HP x 4P 400 x 380 400 400 x 2 pcs 100 x 4爪 x 12 pcs 250~500 △◯
GT-518 20HP x 4P 450 x 380 400 450 x 2 pcs 75 x 6爪 x 18 pcs 300~600 △◯
GT-520 30HP x 4P 500 x 380 400 250 x 4 pcs 100 x 5爪 x15 pcs 400~700
GT-524 40HP x 4P 600 x 380 400 300 x 4 pcs 100 x 5爪 18 pcs 500~900
GT-528 50HP x 4P 700 x 450 500 350 x 4 pcs 100 x 7爪 21 pcs 600~1000
GT-532 60HP x 4P 800 x 450 500 400 x 4 pcs  100 x 8爪 x 24pcs 600~1200
GT-536 75HP x 4P 900 x 450 500 450 x 4 pcs 100 x 9爪 27 pcs 600~1500
注:□ Including Switch.
              ○ Including Wheel.
               ◎ Including Blower Cyclone.
              △ Including Cooling System.
